Four product categories — flooring, PP furniture, MS/SS furniture, and accessories. Every line is backed by published test data. Ask for the data sheet before you specify.
Resilient vinyl, heterogeneous composite, heavy-load polymer, and chemical-resistant compact laminate for cleanrooms, hospitals, warehouses, and heavy-load production areas.
Colour runs through the full thickness of the sheet so wear never exposes a different layer beneath. A hard-wearing, fully recyclable roll floor for hospitals, labs, schools, and clean environments.
| Attribute | Specification |
|---|---|
| Product type | Homogeneous, through-body vinyl sheet (E350 / JING series) |
| Roll size | 2.0 mm thickness × 2 m width × 20 m length |
| Recyclability | 100% recyclable |
| Surface finish | Fine granite / terrazzo-effect dispersion |

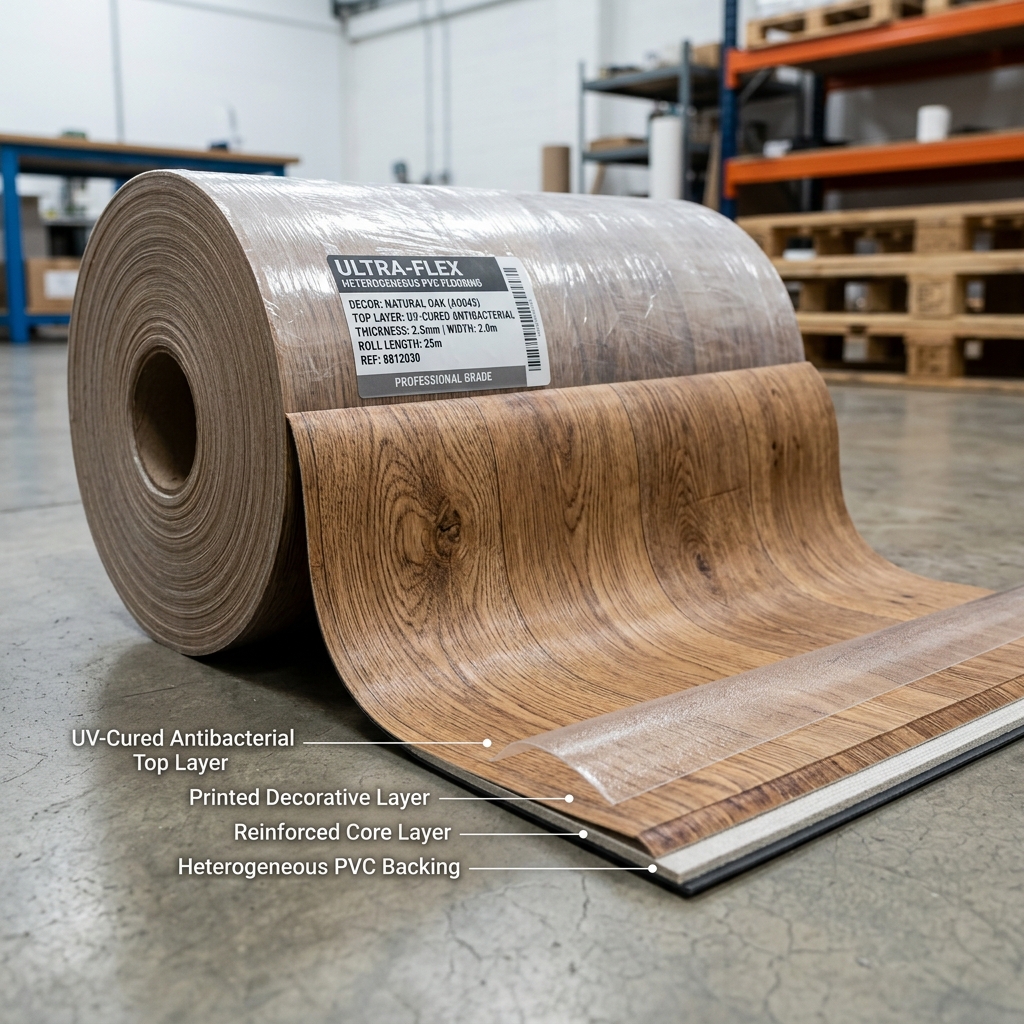

A layered composite PVC roll floor: printed decorative layer for design flexibility, glass-fibre reinforcement for dimensional stability, and a UV-cured antibacterial top layer for hygiene-sensitive spaces.
| Layer | Function |
|---|---|
| UV antibacterial layer | Surface hygiene & UV-cured wear protection |
| Wear layer | Abrasion resistance for foot / light wheeled traffic |
| Printed layer | Decorative pattern — wide design range |
| Glass fibre layer | Dimensional stability, resists stretch & shrinkage |
| Dense under layer | Base stability & installation grip |

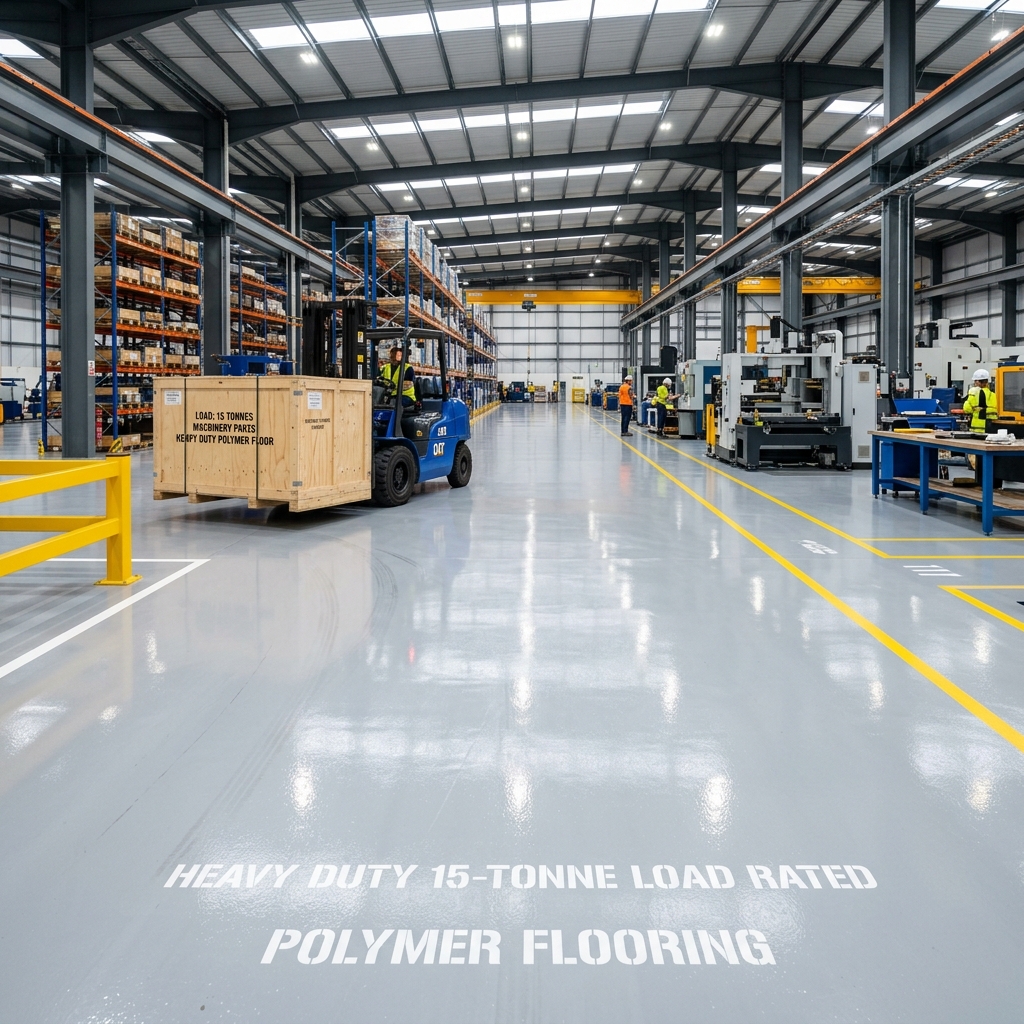

A dual polyester-fibre reinforced roll floor rated for heavy load traffic — forklifts, hydraulic trolleys, and AGVs — with optional permanent anti-static or corrosion-resistant grades for electronics and process areas.
| Property | Standard | Result |
|---|---|---|
| Total thickness | EN 428 | 1.4 – 4.0 mm |
| Roll width | EN 426 | 2.0 m |
| Roll length | EN 426 | 20 / 30 m |
| Fire performance | GB 8624-2012 | Grade B1 |
| Non-skid property | EN 13893 | R9 |
| Abrasion group | EN 660 | T-grade |
| Residual indentation | EN ISO 24343-1 | < 0.1 mm |
| Antistatic performance | ASTM F150 | 10&sup6; ≤ Rt ≤ 10&sup9; |
| Dimensional stability | EN 434 | < 0.4% |
| Hardness | Shore Hardness | 95A |
General-purpose non-skid finish for production floors.

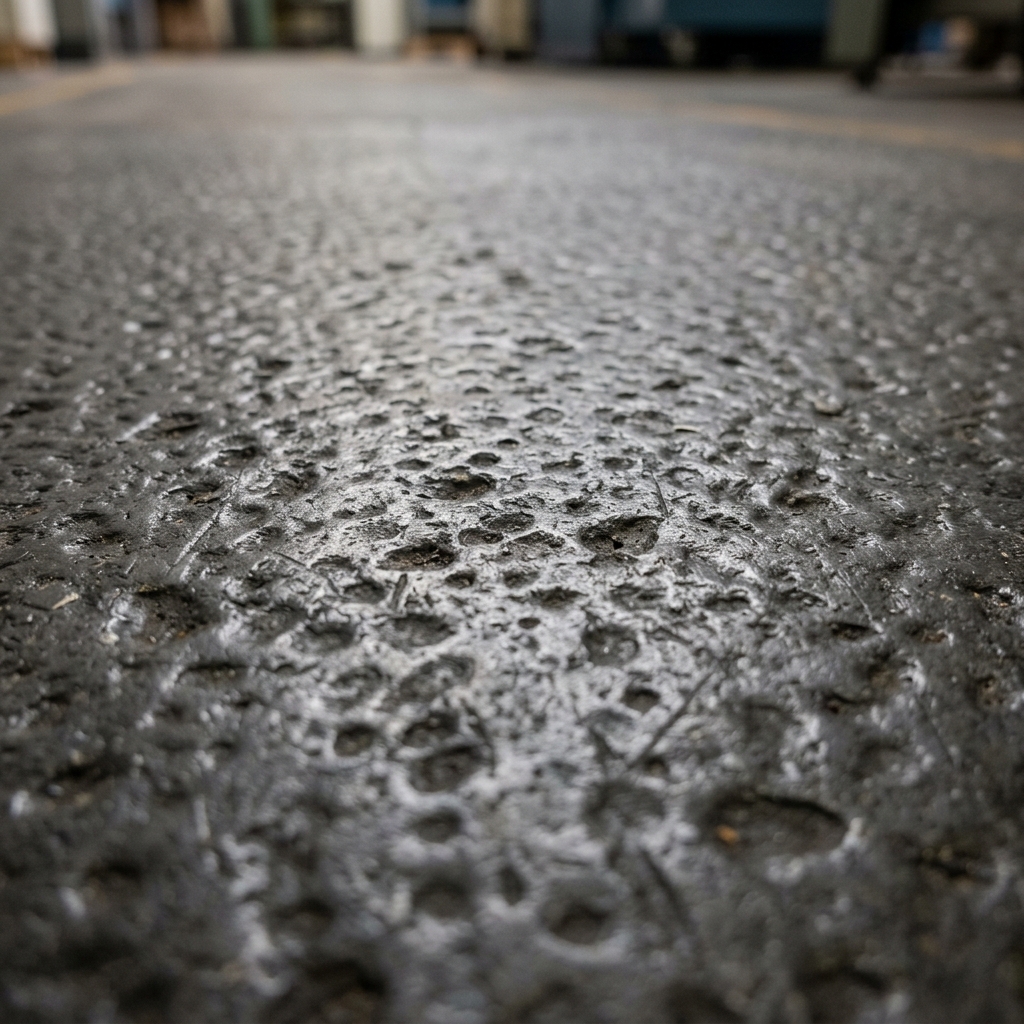

Higher grip finish for wet or high-traffic zones.

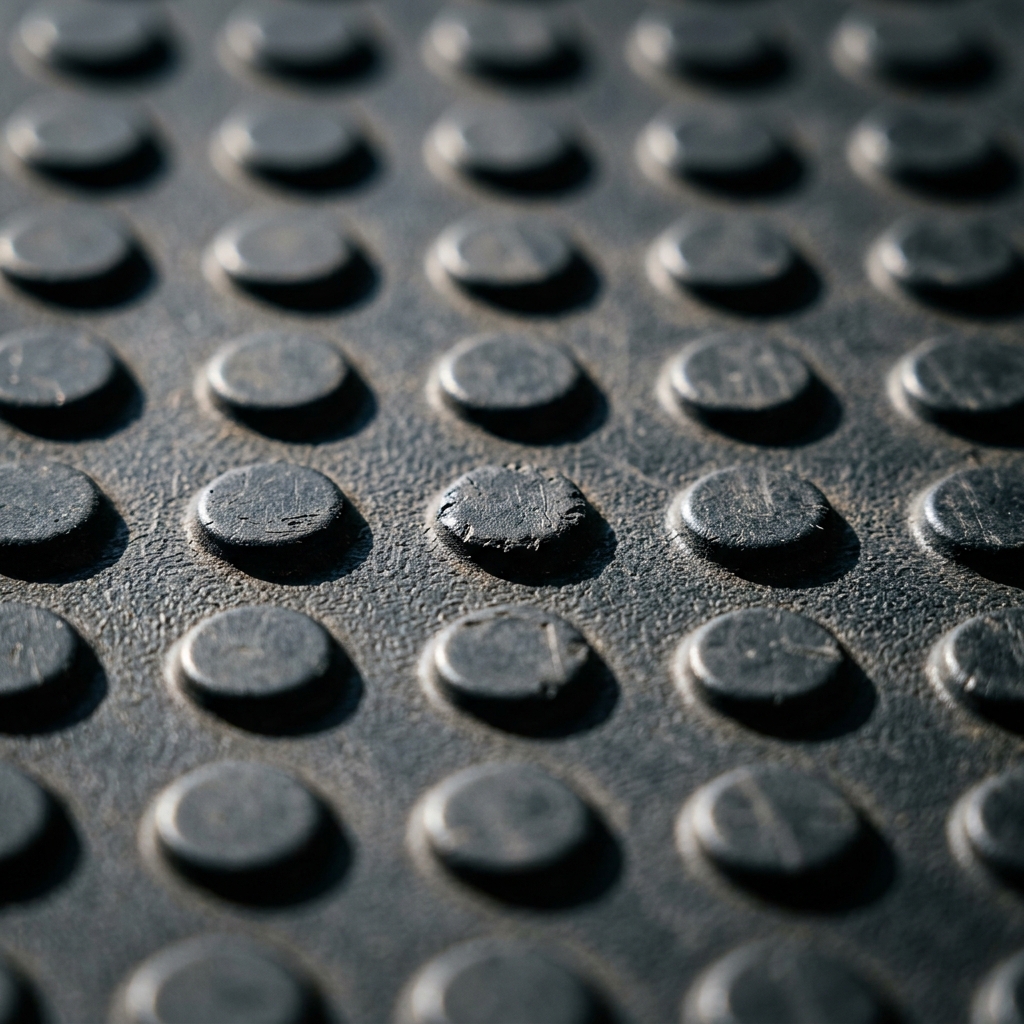

Raised-dot pattern for stairs, ramps, and walkways.
A phenolic-resin core reinforced with kraft paper layers, compressed into a homogeneous, joint-free panel. Used for lab worktops, fume hood linings, and healthcare surfaces where chemical and bacterial exposure is constant.
| Attribute | Detail |
|---|---|
| Material | Phenolic resin + kraft paper, melamine-resin decorative face |
| Thickness range | 6 – 25 mm (popular: 12, 12.7, 15, 16, 18, 19 mm) |
| Standard sizes | 1220×1830 mm up to 1830×3660 mm (8 formats) |
| Surface finish | Texture, matte, or gloss |
| Edge treatment | Round edge or flat edge |
| Typical use | Lab benches, fume hoods, hospital reception & nurse stations |
Polypropylene construction delivers exceptional chemical inertness across acids, alkalis, and solvents — the first choice for wet chemistry and corrosive-environment labs. All items manufactured from virgin-grade PP.
Fully fabricated from 8 mm virgin polypropylene — frame, liner, worktop, baffle, and duct — giving total resistance to HF, HCl, H&sub2;SO&sub4;, and other strong acids that would corrode a steel cabinet. The sash is clear PVC for chemical compatibility.
| Model | External (W × D × H) | Internal (W × D × H) | Sash opening |
|---|---|---|---|
| PP-FH-1200 | 1200 × 850 × 2350 mm | 950 × 600 × 1000 mm | 600 mm |
| PP-FH-1500 | 1500 × 850 × 2350 mm | 1250 × 600 × 1000 mm | 600 mm |
| PP-FH-1800 | 1800 × 850 × 2350 mm | 1550 × 600 × 1000 mm | 600 mm |
| Component | Material & specification |
|---|---|
| Frame & carcass | 8 mm virgin polypropylene sheet, thermally welded joints |
| Sash window | 6 mm clear PVC (chemically compatible) |
| Worktop | Integral 10 mm PP — acid, alkali & solvent resistant |
| Baffle & liner | 4 mm PP sheet — smooth, wipeable, no crevices |
| Exhaust duct | PP duct, Ø150 mm outlet |
| Water service | PP single-way faucet (optional 3-way) |
| Sink | Integral moulded PP sink bowl (optional) |
| Face velocity | 0.5 m/s ± 0.1 m/s at 200 mm sash opening |
Modular polypropylene cabinet units — base cabinets, wall-mounted units, tall storage, and mobile trolleys — fully inert to the reagents stored inside. Configured to match bench layout and lab workflow.
| Type | Standard width | Height | Notes |
|---|---|---|---|
| Base cabinet (single door) | 450 / 600 mm | 850 mm | 1 adjustable shelf + plinth |
| Base cabinet (double door) | 900 / 1200 mm | 850 mm | 2 adjustable shelves + plinth |
| Drawer unit (3-drawer) | 450 / 600 mm | 850 mm | PP-lined drawers with stop |
| Wall cabinet | 450 / 600 / 900 mm | 600 mm | Glass or PP door options |
| Tall storage cabinet | 600 mm | 1800 mm | 4 adjustable shelves, double door |
| Mobile PP trolley | 600 mm | 850 mm | 4 castors (2 lockable) |
| Property | Detail |
|---|---|
| Panel material | 8 mm virgin polypropylene, thermally welded |
| Doors | PP swing or PP sliding; piano hinge, adjustable |
| Shelves | PP board, adjustable on PP shelf-pins |
| Handles | PP finger-pull or stainless knob |
| Load per shelf | Up to 30 kg evenly distributed |
| Colour | Natural (white-grey); custom colour available on request |

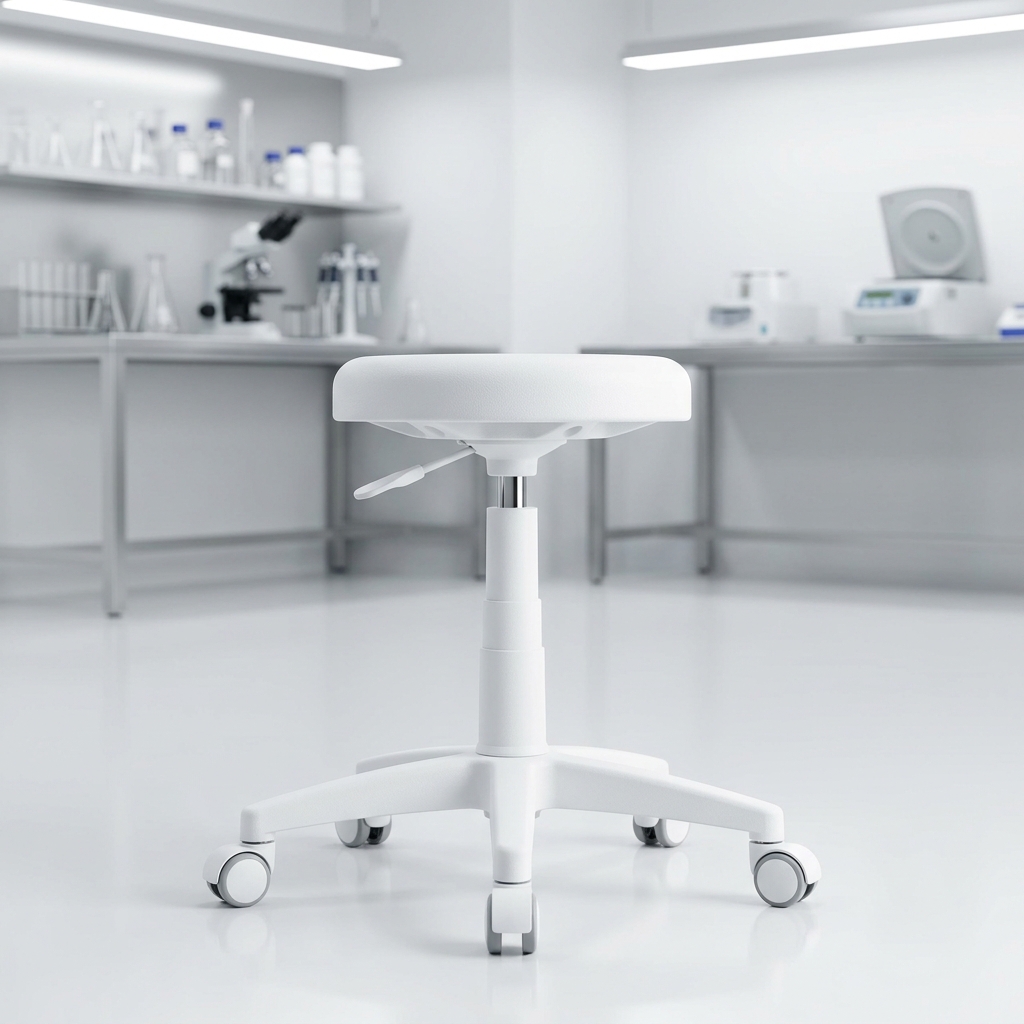

A fully polypropylene lab stool for wet chemistry, acid-handling, and cleanroom environments where metal or fabric cannot be used. Moulded PP seat, PP frame, and PP footrest — autoclavable and chemical-wipeable.
| Attribute | Detail |
|---|---|
| Frame material | Virgin polypropylene (PP) |
| Seat | Moulded PP, contoured ergonomic dish |
| Footrest | Adjustable PP ring footrest |
| Height range | 580 – 760 mm seat height (manual lock) |
| Max load | 120 kg |
| Anti-static grade | Available on request (ESD PP < 10&sup9; Ω) |
| Colour | Natural white-grey; other colours on request |
Cold-rolled mild steel (MS) or 304/316 stainless steel (SS) for the full lab fitout — fume hoods, containment cabinets, cleanroom pass-throughs, gown storage, lockers, and more. Epoxy-powder coat on MS; brushed or mirror on SS.
Ducted fume extraction cabinet built on 1.0–1.2 mm cold-rolled steel with epoxy-powder coat interior, solid-core physicochemical worktop, and embedded 5 mm tempered glass sash. Protects researchers from toxic vapours, particulates, and reactive chemicals.
| Model | External (W × D × H) | Internal (W × D × H) | Sash opening |
|---|---|---|---|
| FH-1200 | 1200 × 850 × 2350 mm | 950 × 668 × 1180 mm | 800 mm |
| FH-1500 | 1500 × 850 × 2350 mm | 1250 × 668 × 1180 mm | 800 mm |
| FH-1800 | 1800 × 850 × 2350 mm | 1550 × 668 × 1180 mm | 800 mm |
| Component | Specification |
|---|---|
| Frame & carcass | 1.0–1.2 mm cold-rolled steel, white epoxy-powder coat |
| Sash window | 5 mm tempered glass, vertical sliding |
| Worktop | 12.7 mm solid-core physicochemical board — acid, alkali & impact resistant |
| Baffle | 5 mm solid-core resistant sheet |
| Control panel | LCD with airflow display & alarm |
| Electrical outlets | 4 × 10A / 220V 5-hole waterproof multifunction sockets |
| Exhaust outlet | Ø250 mm, connects to ducted extract system |

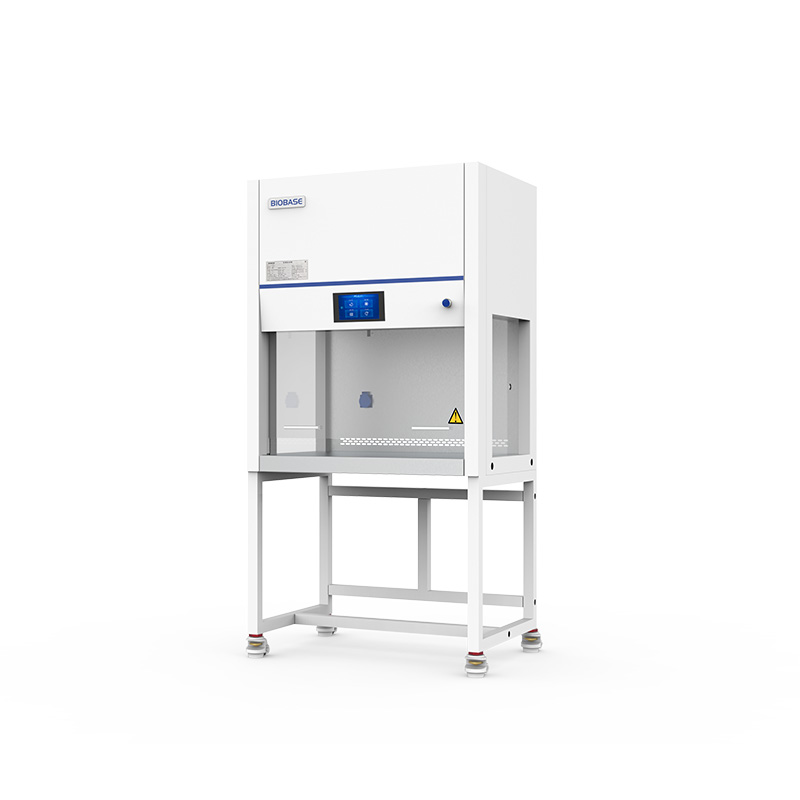

Provides a sterile, particle-free working environment by delivering HEPA-filtered air in a smooth unidirectional flow across the work surface. For microbiology, cell culture, pharmaceutical compounding, and any work requiring ISO Class 5 cleanliness at the bench.
| Model | Flow type | Work area (W × D) | Cleanliness class |
|---|---|---|---|
| LF-V-900 | Vertical flow | 900 × 600 mm | ISO Class 5 |
| LF-V-1200 | Vertical flow | 1200 × 600 mm | ISO Class 5 |
| LF-H-1200 | Horizontal flow | 1200 × 600 mm | ISO Class 5 |
| LF-H-1500 | Horizontal flow | 1500 × 600 mm | ISO Class 5 |
| Property | Detail |
|---|---|
| HEPA filter efficiency | H14 — ≥99.995% at 0.3 µm (MPPS) |
| Air velocity | 0.45 m/s ± 20% at filter face |
| Casing | Cold-rolled steel, white epoxy-powder coat |
| Work surface | Stainless steel 304, smooth, cleanable |
| UV lamp | Germicidal UV-C, interlocked with sash sensor |
| Noise level | ≤ 62 dB(A) at 1 m |
| Power supply | 220V / 50 Hz, single phase |

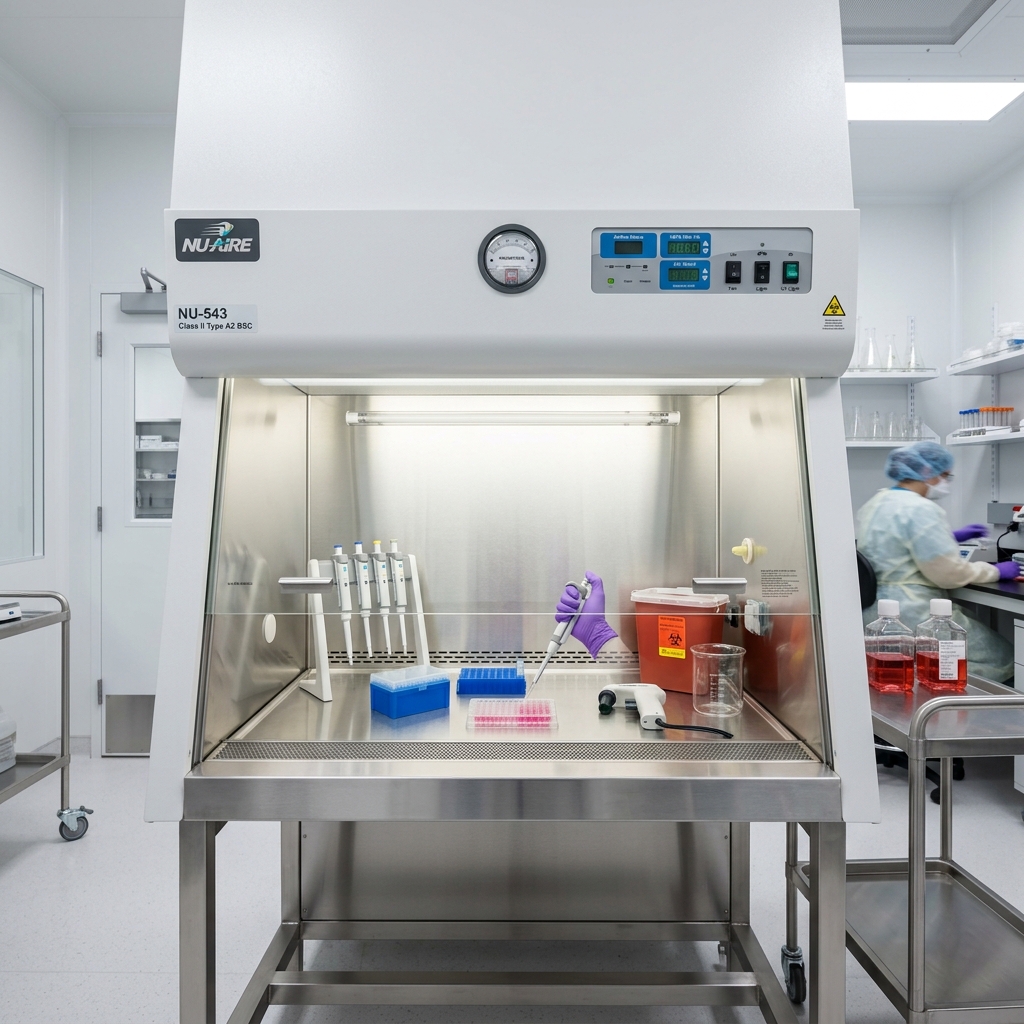

Class II Type A2 biological safety cabinet providing simultaneous protection for operator, product, and environment through an inward air curtain, HEPA-filtered supply air, and HEPA-filtered exhaust. Certified to NSF/ANSI 49 and EN 12469.
| Model | Nominal width | Work area (W × D) | Min. inflow velocity |
|---|---|---|---|
| BSC-900 | 900 mm (3 ft) | 780 × 500 mm | 0.53 m/s |
| BSC-1200 | 1200 mm (4 ft) | 1080 × 500 mm | 0.53 m/s |
| BSC-1500 | 1500 mm (5 ft) | 1380 × 500 mm | 0.53 m/s |
| BSC-1800 | 1800 mm (6 ft) | 1680 × 500 mm | 0.53 m/s |
| Property | Detail |
|---|---|
| Casing | Cold-rolled steel, white epoxy-powder coat |
| Interior liner | Stainless steel 304 — smooth radius corners, easy decontamination |
| Supply HEPA | H14 — ≥99.995% at 0.3 µm |
| Exhaust HEPA | H14 — ≥99.995% at 0.3 µm |
| Sash glass | 6 mm tempered laminated safety glass, vertical sliding |
| UV lamp | Germicidal UV-C, interlocked (opens = lamp off) |
| Alarms | Airflow, sash position, filter loading |
| Electrical | 2 × 220V / 10A interior sockets |

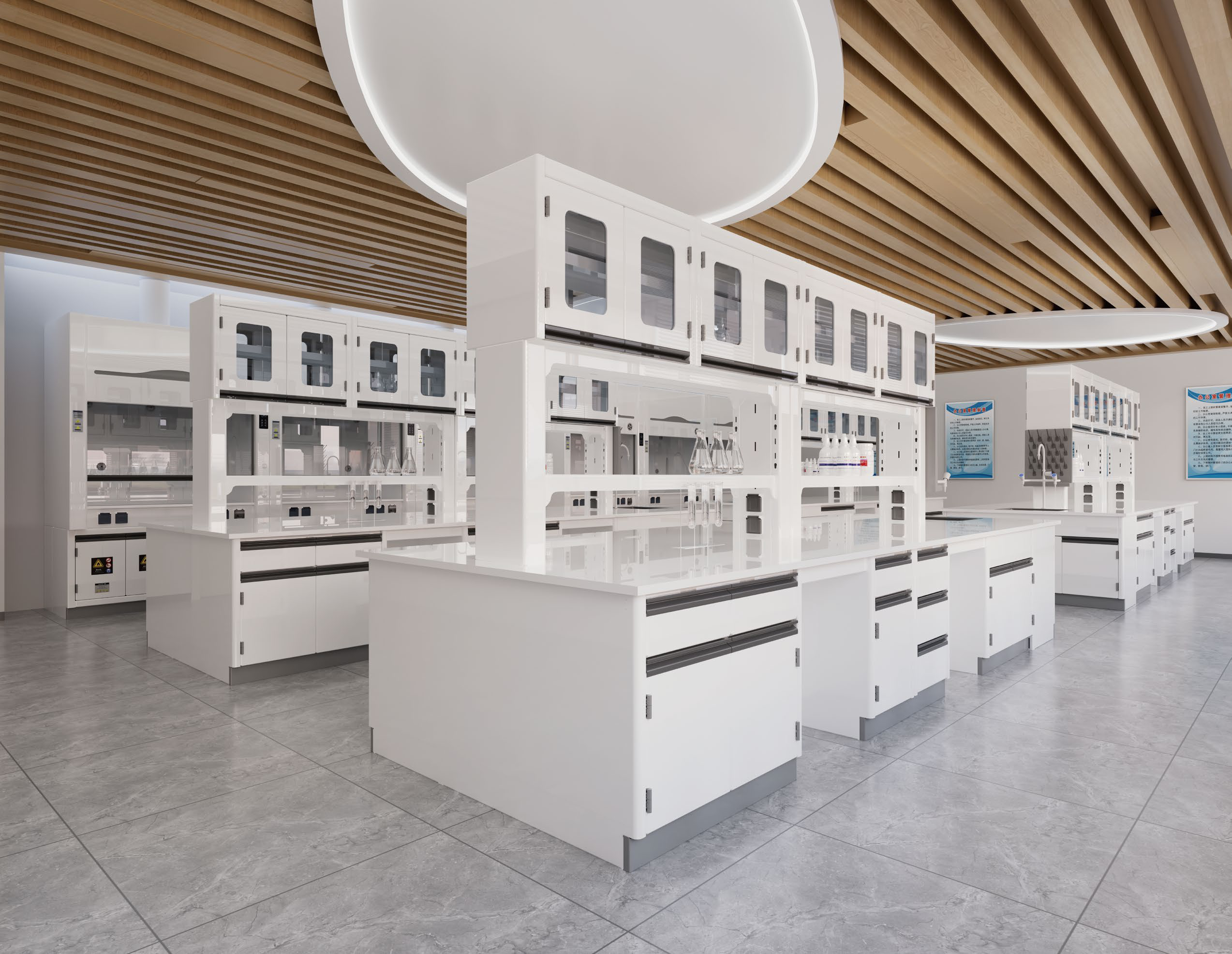

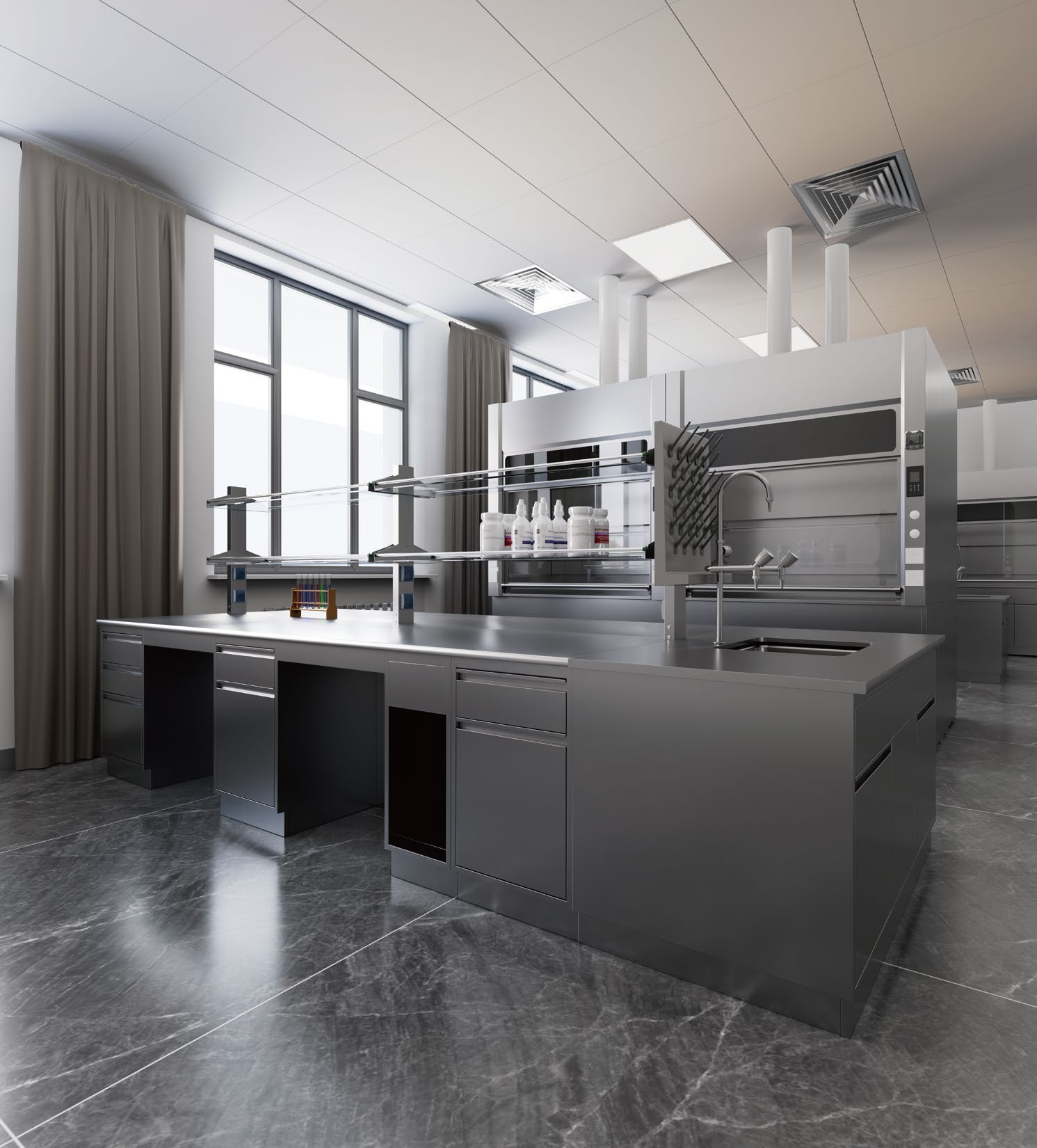

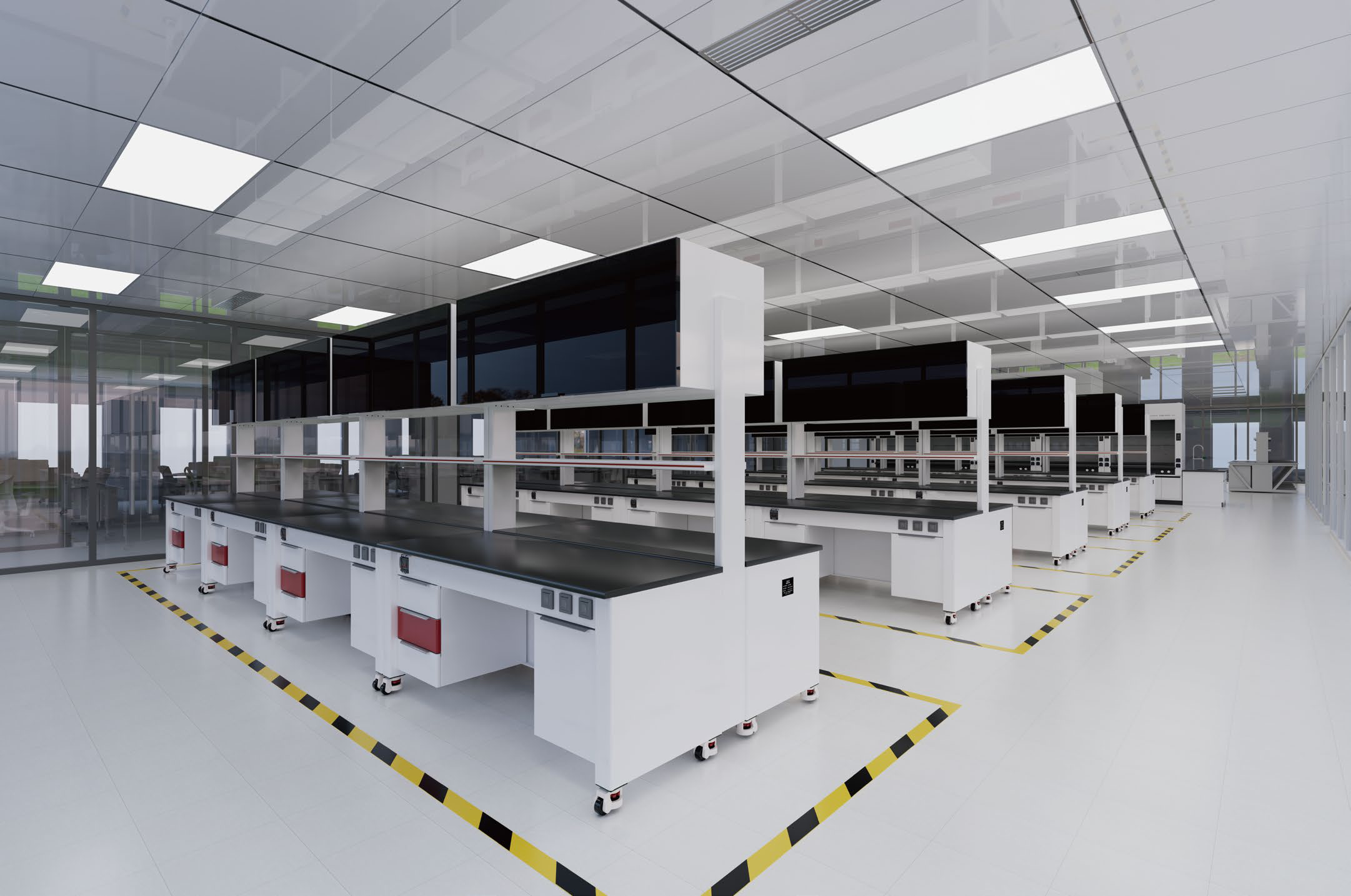

The core modular bench system — steel-frame base cabinets, wall units, overhead shelving, and island benches — taking any worktop material (ceramic, PP, phenolic, laminate, or stainless) and fully customisable in length, configuration, and finish.
| Material | Best suited for | Chemical resistance | Temperature resistance |
|---|---|---|---|
| Ceramic | Chemical, industrial, medical & biological | High — no colour change | High |
| PP (polypropylene) | Chemical, industrial, medical & biological | High — minor colour change | High |
| Phenolic (paper/resin) | Chemical, industrial, medical & biological | High — minor colour change | Moderate–high |
| Laminate | Biology, food & beverages | Moderate | Moderate |
| Stainless steel 304 | Biology, food & beverages | Moderate | High |
| Module type | Width options | Depth | Height |
|---|---|---|---|
| Base bench module | 600 / 900 / 1200 / 1500 mm | 750 mm | 850 mm (adjustable ±50 mm) |
| Island bench (double-sided) | 1200 / 1500 / 1800 mm | 1500 mm | 850 mm |
| Wall bench module | 600 / 900 / 1200 mm | 650 mm | 850 mm |
| Overhead cabinet | 600 / 900 / 1200 mm | 350 mm | 600 mm |
| Reagent shelf | Custom length | 200 mm | Wall-mounted |

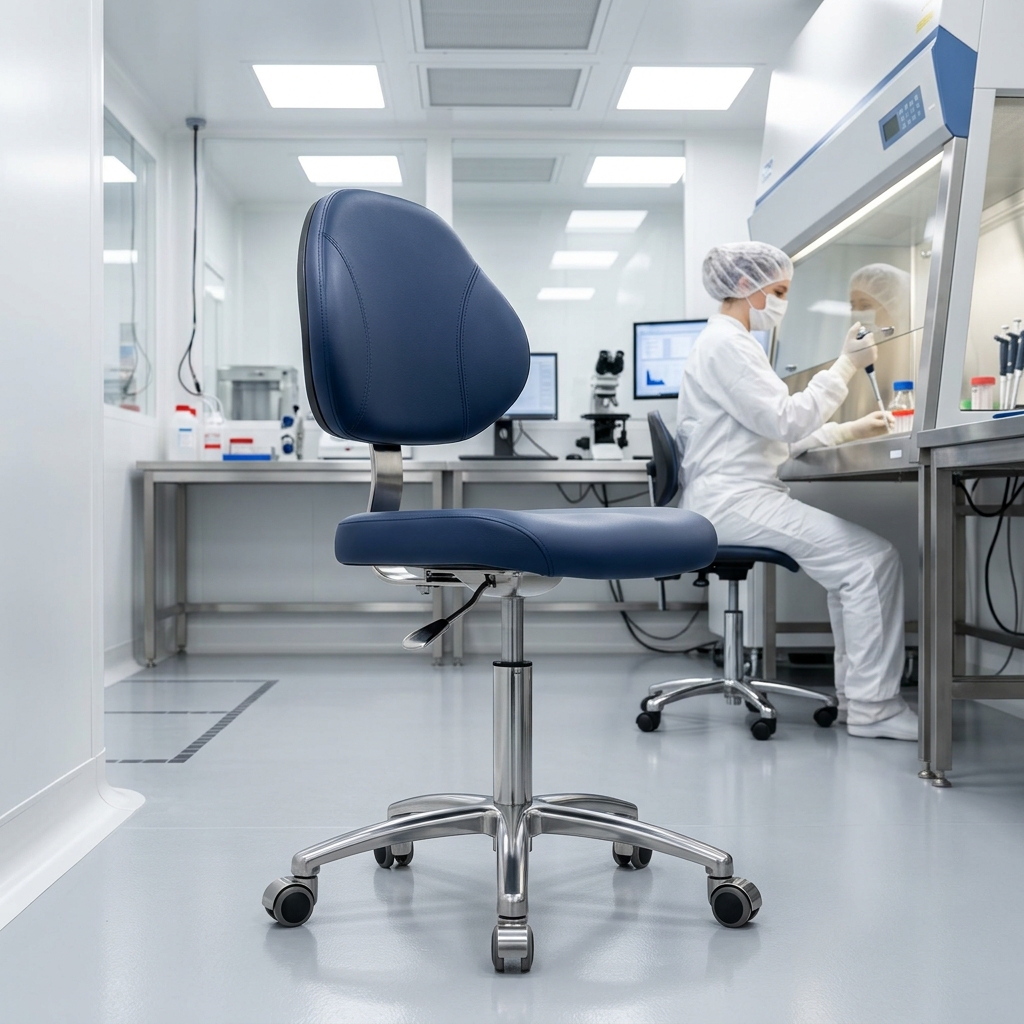

Height-adjustable lab stools with gas-lift or manual adjustment, in a range of seat materials (PU upholstered, PP moulded, or SS dish) to match the environment. Available with or without backrest and adjustable footrest ring.
| Model | Seat material | Height range | Backrest |
|---|---|---|---|
| LS-PU | PU foam upholstery, wipe-clean vinyl | 500–700 mm | Optional |
| LS-PP | Moulded polypropylene | 500–700 mm | No |
| LS-SS | Stainless steel 304 dish seat | 500–700 mm | No |
| LS-ESD | ESD vinyl (conductive) | 500–700 mm | Optional |
Steel-frame lab doors engineered for cleanroom, biosafety, and controlled-access environments. Supplied with vision panel options, air-seal gaskets, and automatic closers in single or double leaf, swing or sliding configurations.
| Type | Frame material | Panel infill | Seal type |
|---|---|---|---|
| Standard swing door | 1.5 mm MS, epoxy-powder coat | Mineral-wool core, 45 mm thick | Neoprene perimeter seal |
| Vision-panel door | 1.5 mm MS, epoxy-powder coat | 5 mm tempered glass panel | Neoprene perimeter seal |
| Full-glass lab door | SS 304 frame | 10 mm toughened clear glass | Brush seal |
| Cleanroom sliding door | SS 316 frame | Honeycomb aluminium panel | Air-seal double gasket |
A contamination-control changing bench that creates a physical barrier at the gowning room entry point. Personnel sit and swing their legs over without floor contact on the clean side. Fitted with under-bench shoe storage and coat hooks on both sides.
| Attribute | Detail |
|---|---|
| Frame material | MS epoxy-powder coat (white) or SS 304 brushed |
| Seat surface | Smooth SS 304 or moulded PP — wipe-clean, seamless |
| Seat height | 500 mm from finished floor |
| Seat width | 450 mm clear (leg-swing clearance) |
| Standard lengths | 900 / 1200 / 1500 / 1800 mm |
| Under-seat storage | Open tray — shoe placement clean/dirty side |
| Coat hooks | SS 304 double hooks, 1 per 450 mm on both sides |
Wall-mounted interlocked transfer hatches that allow materials to pass between rooms of different cleanliness or biosafety classification without breaking containment. Mechanically interlocked so only one side opens at a time.
| Model | Clear opening (W × H × D) | Interior finish | Interlock type |
|---|---|---|---|
| PT-Static | 600 × 600 × 600 mm | SS 304 | Mechanical |
| PT-UV | 600 × 600 × 600 mm | SS 304 | Mechanical + UV cycle timer |
| PT-Large | 900 × 900 × 600 mm | SS 316 | Mechanical + electronic alarm |
| PT-Custom | Custom size | SS 304 or PP | Electronic + alarm |

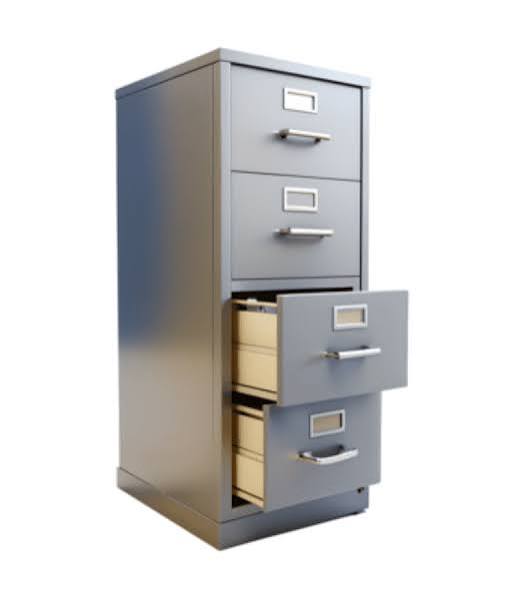

Heavy-gauge cold-rolled steel filing cabinets with anti-tilt interlock and full-extension drawers for lab documentation, SOPs, batch records, and safety data sheets. Vertical (2, 3, 4-drawer) and lateral filing configurations.
| Model | Configuration | W × D × H | File capacity |
|---|---|---|---|
| FC-V2 | 2-drawer vertical | 470 × 620 × 730 mm | ~200 files (A4 / Legal) |
| FC-V3 | 3-drawer vertical | 470 × 620 × 1050 mm | ~300 files (A4 / Legal) |
| FC-V4 | 4-drawer vertical | 470 × 620 × 1350 mm | ~400 files (A4 / Legal) |
| FC-L2 | 2-drawer lateral | 900 × 450 × 730 mm | ~500 files (A4 / A3) |
Ventilated storage for lab coats, cleanroom gowns, and PPE — maintaining garment cleanliness between uses. Available in standard (passive vented) or active UV-decontaminating variants for gowning rooms and biosafety suites.
| Attribute | Detail |
|---|---|
| Casing | 1.2 mm MS, anti-bacterial white epoxy-powder coat |
| Interior | SS 304 brushed finish, radius corners |
| Hanging capacity | 6 / 10 / 14 garments (single or double door) |
| Ventilation (standard) | Passive louvred vents, both sides |
| Ventilation (upgraded) | EC fan with H13 HEPA filter, positive pressure |
| UV decontamination model | UV-C germicidal lamp with timer, interlocked door |
| Dimensions (single door) | W600 × D550 × H1800 mm |
| Dimensions (double door) | W1200 × D550 × H1800 mm |

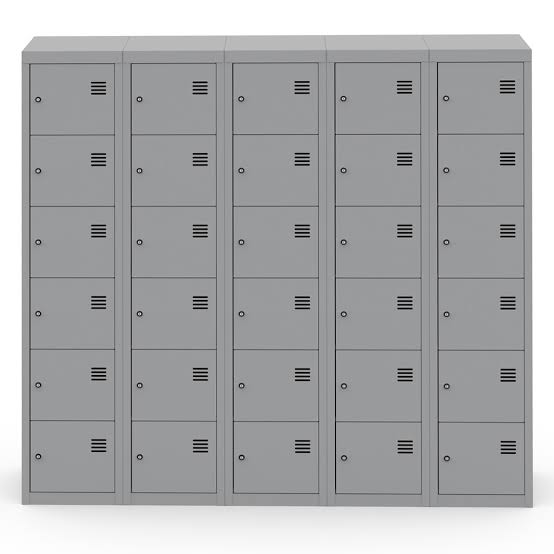

Personal storage lockers for lab personnel in single or double tier, with ventilated louvred doors and key-lock or padlock hasp. Supplied individually or as a bank, with sloped tops to prevent unauthorised storage. Epoxy-powder coat in a range of colours.
| Configuration | Each compartment (W × D × H) | Interior fittings |
|---|---|---|
| Single-tier, full height | 300 × 450 × 1800 mm | Hanging hook + shelf |
| Double-tier | 300 × 450 × 900 mm | Shelf in each |
| Triple-tier | 300 × 450 × 600 mm | Shelf only |
| Wide single-tier | 450 × 450 × 1800 mm | Full-length coat hanging |

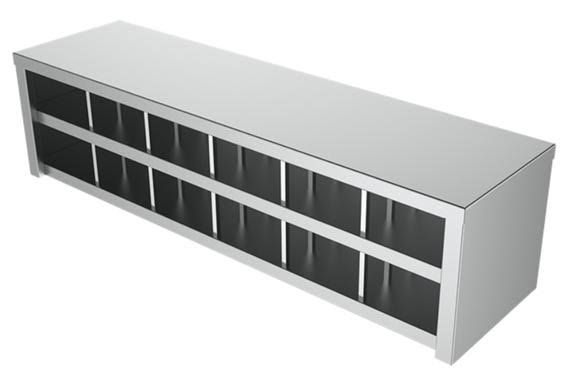

Stainless or powder-coated steel shoe racks for gowning areas and cleanroom airlocks. Angled slats allow shoes to drain and air-dry while keeping footprint minimal. Wall-mounted or floor-standing, with 2–4 tier options for high-capacity gowning rooms.
| Model | Tiers | Pairs capacity | W × D × H |
|---|---|---|---|
| SR-2T-900 | 2-tier, floor-standing | 12 pairs | 900 × 350 × 750 mm |
| SR-3T-900 | 3-tier, floor-standing | 18 pairs | 900 × 350 × 1050 mm |
| SR-W-900 | 2-tier, wall-mounted | 10 pairs | 900 × 300 × 600 mm |
| SR-W-1200 | 2-tier, wall-mounted | 14 pairs | 1200 × 300 × 600 mm |
Individual service components and safety fittings that complete the functional bench — faucets, gas and water services, electric panels, sinks, and emergency safety equipment. Available in PP or stainless steel to match the bench specification.
PP and stainless-steel deck-mounted laboratory faucets for water services on lab benches and fume hoods. All faucets have ½″ BSP connections, ceramic disc cartridges, and are pressure-tested to 10 bar.
Single-lever polypropylene body & gooseneck spout for cold water at reagent benches and fume hoods. Maximum chemical resistance to corrosive acids and alkalis.
Deck-mounted 3-way gooseneck valve with one inlet and three independently valved outlets for water, gas, or vacuum supply. Acid-proof virgin PP construction.
Solid stainless steel 304 body with polished chrome finish for hot & cold water at general laboratory benches. Drip-free ceramic disc valve.
Drop-in, undermount, and cup sinks in virgin polypropylene and grade 304 stainless steel. Designed for high chemical resilience and clean discharge into laboratory drainage lines.
Moulded one-piece polypropylene sink bowl for chemical benches and reagent islands. Completely inert to strong mineral acids, alkalis, and solvents. Integral waste strainer included.
Shallow-profile PP drip cup sink designed specifically for fume hood worktop cutouts. Sloped interior base prevents standing liquid; includes chemical waste bottle trap connection.
Deep-drawn stainless steel 304 basin for biological, medical, and food-testing benches. Radius corners for sanitary wipe-down with overflow protection.
Bench-mounted and fume hood service fixtures for regulated water, compressed air, vacuum, and technical gas distribution. International colour-coding and pressure-tested valve cores.
Panel-mounted remote water control valve with bench or front-fascia control knob. PP body for acid fume hoods or chrome brass for standard. 10-bar rated.
PP waste drainage adapter with removable strainer for cup sinks and bench manifolds. Connects seamlessly into 50 mm chemical lab drain networks.
Fascia-controlled quarter-turn needle valve with colour-coded safety index buttons: Natural gas (yellow), Nitrogen (black), Vacuum (grey). 100% leak tested.
Multi-step serrated hose nozzle for 6 mm and 8 mm ID flexible tubing. Anti-twist design with locking threaded collar to prevent tubing detachment.
Surface-mounted or service-spine integrated electrical distribution boxes. Provides localized circuit breaker protection and clean power delivery to sensitive instrumentation.
4 × universal 3-pin 10A / 220V sockets in a powder-coated steel trunking panel with individual neon power indicators. IP44 splash-proof rating.
8 × 10A outlets with integrated MCB miniature circuit breaker, ELCB earth leakage protection, and master rotary isolator switch. Built for analyzer-heavy workstations.
Emergency decontamination equipment compliant with ANSI Z358.1. Instant hands-free activation delivering high-volume tepid water to flush chemical splash incidents.
Overhead deluge safety shower with pull-rod activation and high-flow stainless deluge head delivering ≥76 L/min. Stay-open ball valve requires manual shut-off.
Twin-head aerated eyewash with automatic flip-open dust covers. Push-plate activation provides continuous soft-flow flushing at ≥1.5 L/min per nozzle.
Integrated all-in-one emergency decontamination station. Delivers simultaneous overhead body flush and hands-free eye wash flushing in space-constrained corridors.
Pneumatic height-adjustable laboratory stools designed for technician comfort and compliance. Configurable in wipeable PU foam, acid-resistant moulded PP, stainless dish, or conductive ESD upholstery.
High-density moulded polyurethane seat and backrest. Wipeable, resistant to alcohol wipes and minor chemical contact. Gas-lift 500–700 mm height stroke.
Engineered for electronics, optical, and static-sensitive cleanrooms. Dissipates electrostatic charge via conductive upholstery and brass earthing chain.
Seamless pressed stainless steel 304 dish seat for sterile pharmaceutical suites, operating theatres, and cleanrooms where no organic matter is permitted.
